DS-03-100SH Three Heads Pneumatic Button Attaching Machine With Security
DS-03-100SH
Delivery
FOB
minimum order
1
Country of Origin
NINGBO /SHNAGHAI
Quantity
- Place of Origin:CN
- After-sales Service Provided:Overseas third-party support available
- Overall Dimensions:420*340*450mm
- Model Number:DS-03-100SH
- Brand Name:DISON
- Type:Industrial Sewing Machine
- Condition:New
- Certification:CE/ISO9001
- Working Voltage:AC 220V
- Working Pressure:0.15~0.8MPa
- Attaching button pressure:150~650kgs(adjustable)
- Button attaching frequency:1 second
- Protection way:Intelligent armguard detection system
- Positioning:with laser positioning light
- Air Displacement:0.1cbm/minute
Product Description

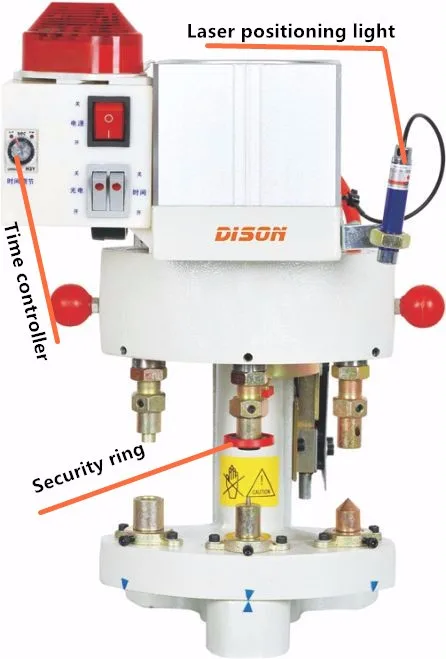

DS-03-100SH Three heads pneumatic button attaching machine with security
This machine can be installed three sets of mold to work, one mold for punchine the holes on the fabric, the other two molds for attaching the buttons.
You don’t need to change the mold, which will save time and increase efficiency.
This machine has intelligent armguard detection system,which will protect worker’s fingers very well without any danger.
This button attaching frequency can be controlled and adjustable.
Fit for different styles and different sizes of eyelet,snap ring,jeans button,decoration button etc.
