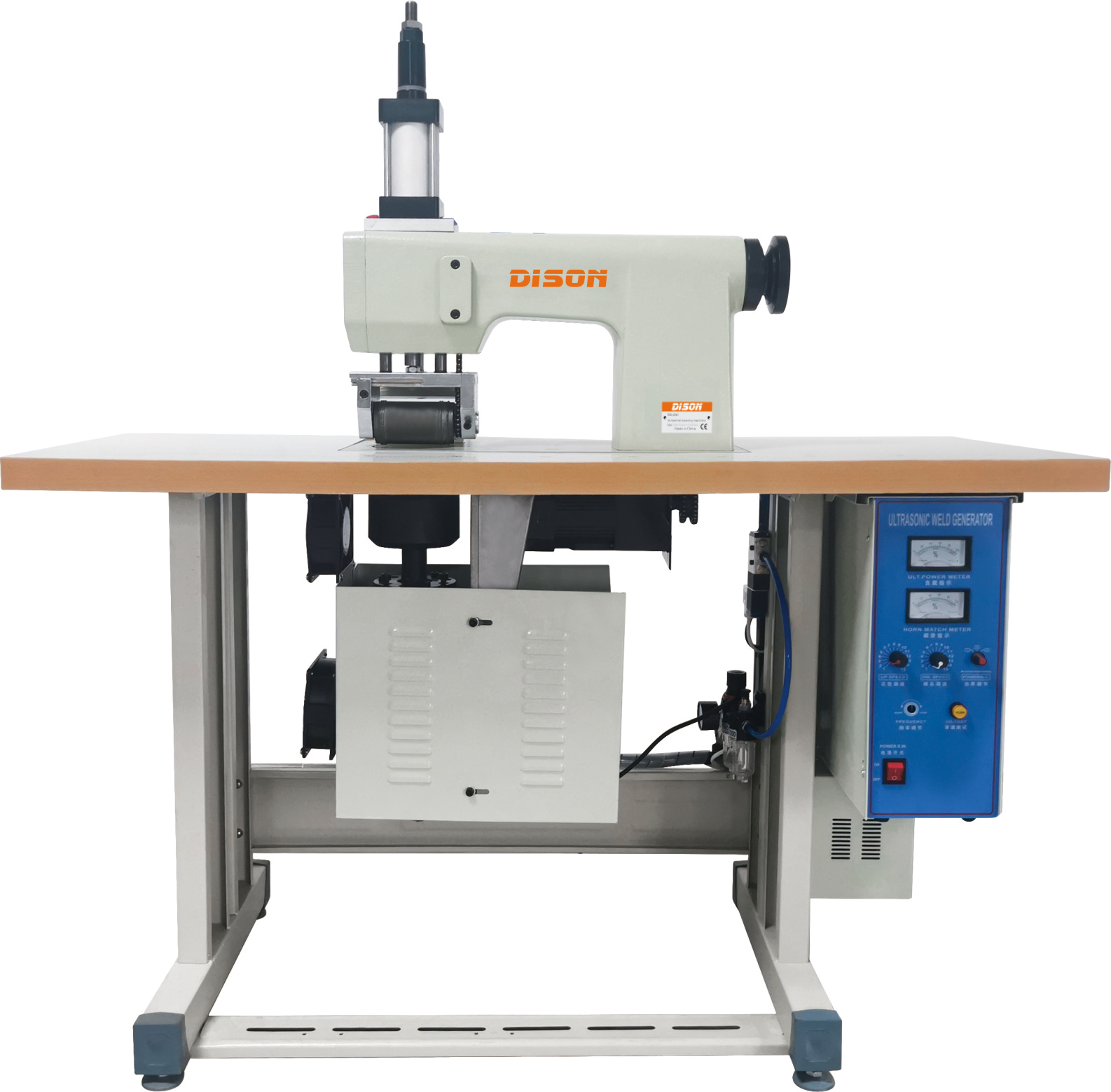

DS-100B Ultrasonic Lace Sewing Machine
| Model | Product Name | Voltage | power | Frequency | Working speed | Roller size | Horn size | Working speed | Gross weight | Machine size |
| DS-60B | Ultrasonic lace machine | AC220V 50-60HZ | 2000W | 20khz | 0-20m/min | 23-55MM | Dia. 70MM | -10℃-28℃ | 140KG | 1200*540*1140MM |
| DS-100B | Ultrasonic lace machine | AC220V 50-60HZ | 2500W | 18khz | 0-18m/min | 50-100MM | Dia.100MM | -10C-28℃ | 160KG | 1200*540*1280MM |
| DS-150 | Ultrasonic lace machine | AC220V 50-60HZ | 2500W | 18khz | 0-18m/min | 100-150MM | 153*25MM | -10℃-28℃ | 140KG | 1200*540*1280MM |
| DS-200 | Ultrasonic lace machine | AC220V 50-60HZ | 2600W | 15khz | 0-20m/min | 150-200MM | 200*25MM | -10℃-28℃ | 150KG | 1200*540*1280MM |
DS-100B Ultrasonic Lace Sewing Machine
1. Use ultrasonic energy for cutting, welding, sealing, seaming, perforating,
embossing, sewing, edge trimming, shape forming, color printing and folding.
CR-150
2. Eliminating traditional needle and thread reduce material cost and higher
working speed.
3. No dissipated edge, wrinkle and shrinkage, can print color on the laces with
colored paper.
4. It has a continuous and infinite welding function, the welding is firm,
beautiful, and the work efficiency is high.
5. No smoke, spark and danger during operation.
CR-150
CR-200
6. Easy operation realizes lowest labor cost, double motors structure.
7. Roller various patterns can be designed according to customer needs, easy to replace, and help you make different
products.
8. Built in computer chip, multi-channel ultrasonic protection system to ensure the safe and stable operation of the machine.
9. Ultrasonic generator providing strong and stable ultrasonic output, suitable for welding and cutting requirements of
different materials and thicknesses.
1. Edge trimming: Single sided straight line or curve cutting, and edge melting treatment, so that the edge is smooth,
not rough, and without burrs;
2. Stitching: Two or more layers of fabrics are stitched together, wireless needleless instead of sewing, and good welding
strength;
3. Stripping: Cutting single or multiple strips of materials at the same time, and melting edge treatment without burrs;
4. Hole cutting: Cut out holes of various patterns and do edge melting treatment;
5. Forming: Cutting, stitching, and embossing at the same time, so that the product is formed at one time.
