DS-1330L Glue Dispensing And Jelly Line Marking Integrated Machine

DS-1330L Glue Dispensing And Jelly Line Marking Integrated Machine

1.Automatic cyclic operation with intermittent jog function, which is easy to operate and greatly improves production efficiency.
2.The dot dispensing and line drawing speed is fast, the glue dots and lines are uniform, the operation is stable, and it can complete dot dispensing and line drawing of various shapes.
3.It uses an industrial control computer host, which can store a large number of graphics, is convenient for reuse and can be quickly called without repeated programming.
4.Independent glue supply system, equipped with a glue supply bucket suitable for 2.5KG bagged glue. The glue flows out from top to bottom, which is convenient for glue replacement and saves glue.
The glue amount, speed and line shape of dispensing can be set according to parameters, fully meeting the glue output requirements without glue leakage or dripping.
5.Servo motor and belt module transmission structure, equipped with a high-speed dispensing jet valve. The valve body can be free of cleaning for 30 days, and the maximum number of dots per minute
can reach up to 15,000. It is equipped with a professional glue pressing system and a high-temperature-resistant precision line drawing valve.
6.Save workspace, reduce labor costs and improve both efficiency and quality.
7.The conventional size of the dispensing nozzle is: 0.2mm~0.7mm, and the daily output of dispensing (calculated based on 10 hours) is about 2,500 pieces. The conventional size of the line drawing
nozzle is:0.2mm~0.7mm, and the line drawing speed can reach 600mm/second.
8.Applicable glues:PUR hot melt glue, PUR jelly glue.

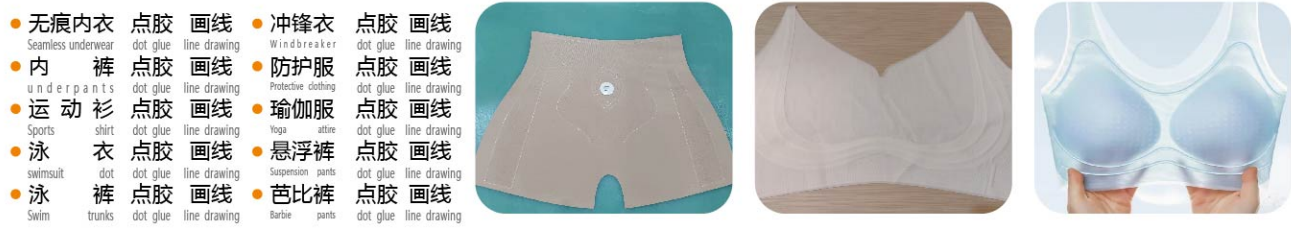

Application
