DS-15128S Pur High-Precision Visual Dispensing Machine

DS-15128S Pur High-Precision Visual Dispensing Machine

1.It can work automatically in a cycle, automatically recognize the contours of cut pieces without the need for positioning. It can simultaneously recognize multiple cut pieces placed arbitrarily, and perform
automatic dispensing, greatly improving production efficiency.

2.Driven by a servo motor and equipped with a high-precision lead screw module, along with a professional glue dispensing system and a high-temperature-resistant precision glue spray valve, the
dispensing and line dispensing speed is faster, the accuracy is higher, and the performance is more stable. It can reach up to 15,000 points per minute. The glue dots and lines are uniform, the operation
is stable, and it can complete various dispensing processes. The valve body can work continuously for 30 days without cleaning.

3.Independently developed intelligent vision dispensing software, together with a high-performance industrialcontrol computer, is easy to operate. It can store multiple independent files, which are
convenient for reuse and can be quickly called without repeated programming.

4.The glue amount, dot size, line thickness, and dispensing speed can be set according to parameters, fully meeting the glue output requirements without glue leakage or dripping.
5.Save workspace, reduce labor costs, and improve both efficiency and quality.
6.The unique tempered glass backlight platform makes the dispensing machine table more flat and stable, and the visual recognition of contours is more accurate.
7.Applicable glue: PUR hot melt glue.

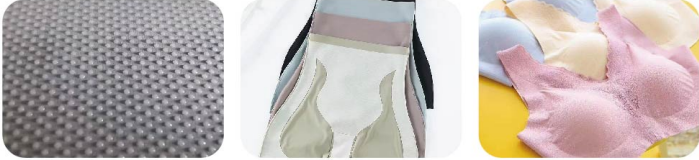

Application
