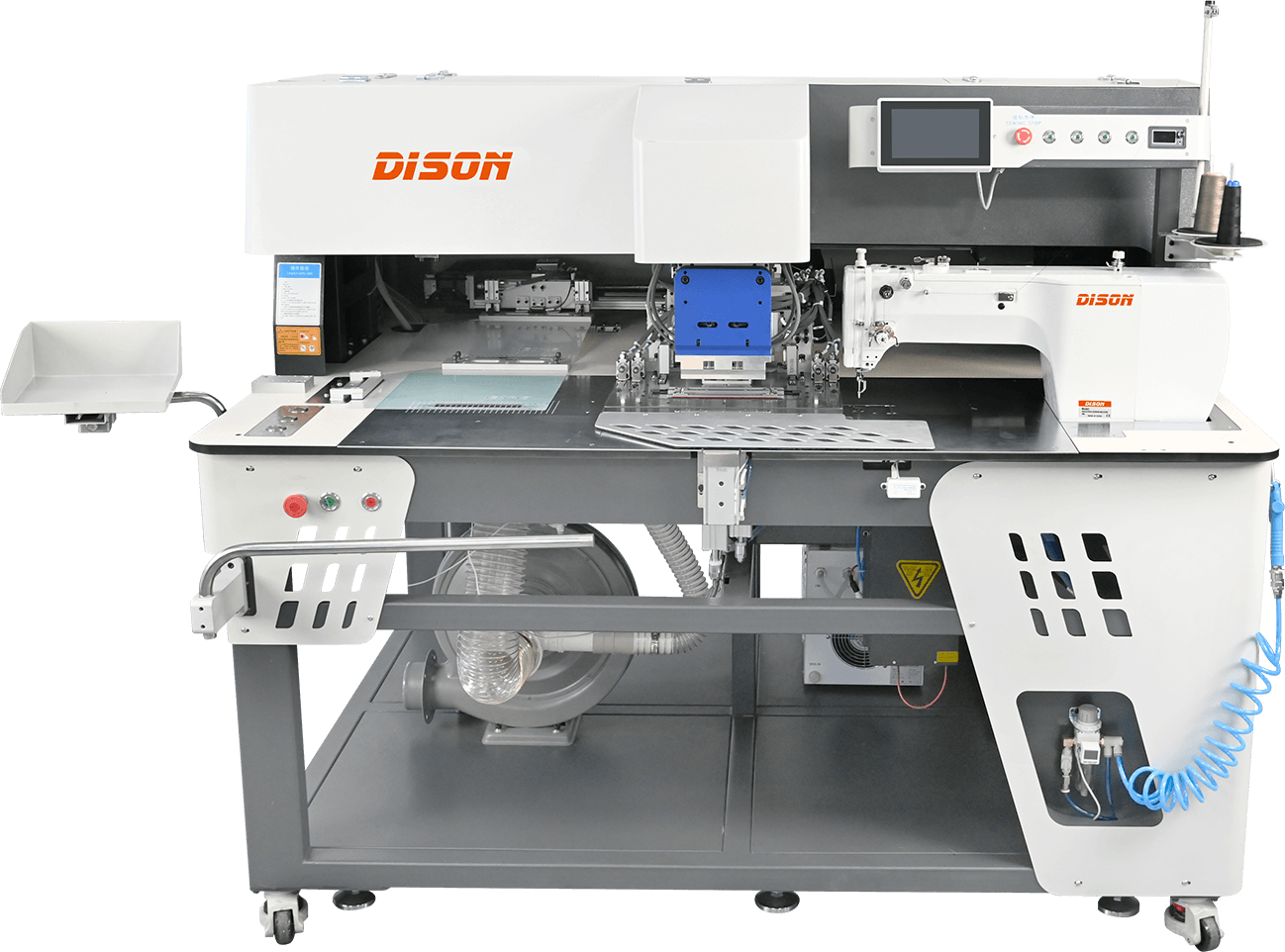

DS-2210N-PW Automatic Pocket Welting Machine With Laser

1 .Pocket opening with laser, automatic folding, automatic feeding, automatic
sewing process one-time completion, high-quality and efficient.
2. 80-100w laser power adjustable, suitable for different fabrics.
3. Infrared positioning function, accurate positioning, simple operation.
4. The intelligent induction, automatic stopping function.



Scope of application: It is suitable for opening and sewing of all kinds of pockets
such as single side pocket, double side pocket, zipper pocket, single side zipper
pocket,double side zipper pocket etc.

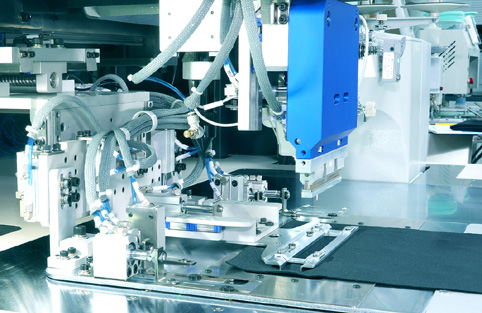

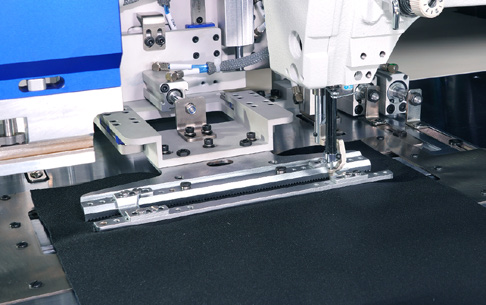

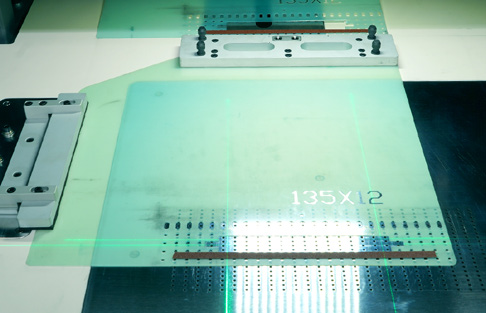

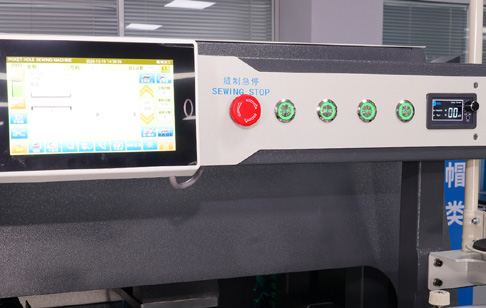

          Infrared positioning                                       Pocket opening with laser                            Automatic sewing                              Touch screen control and data display



X and Y are driven by servo motors, which have the characteristics of fast speed, light sound and long service life. All key parts are imported parts.The
automatic non-ironing pocket folding mechanism adopts automatic cylinder folding technology to improve production efficiency and save labor.The
internal pressure frame automatically shrinks the mechanism, so that the edge stitch changes of the pocket are not limited, and the efficiency is 3 times that
of ordinary pocket opener.

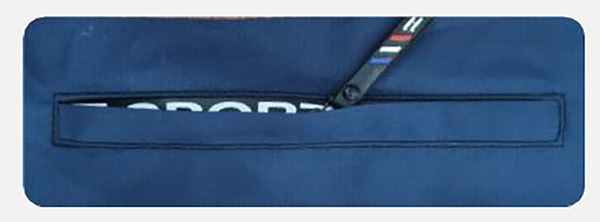

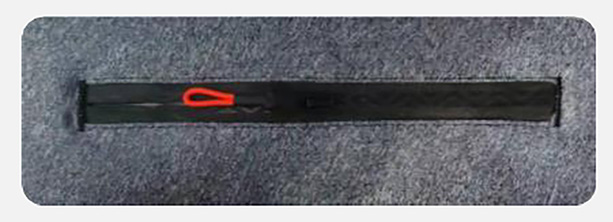

                 Single side pocket                                                Single side zipper pocket                                     Zipper pocket



              Double side pocket                                         Double side pocket zipper pocket

Detailed Images
