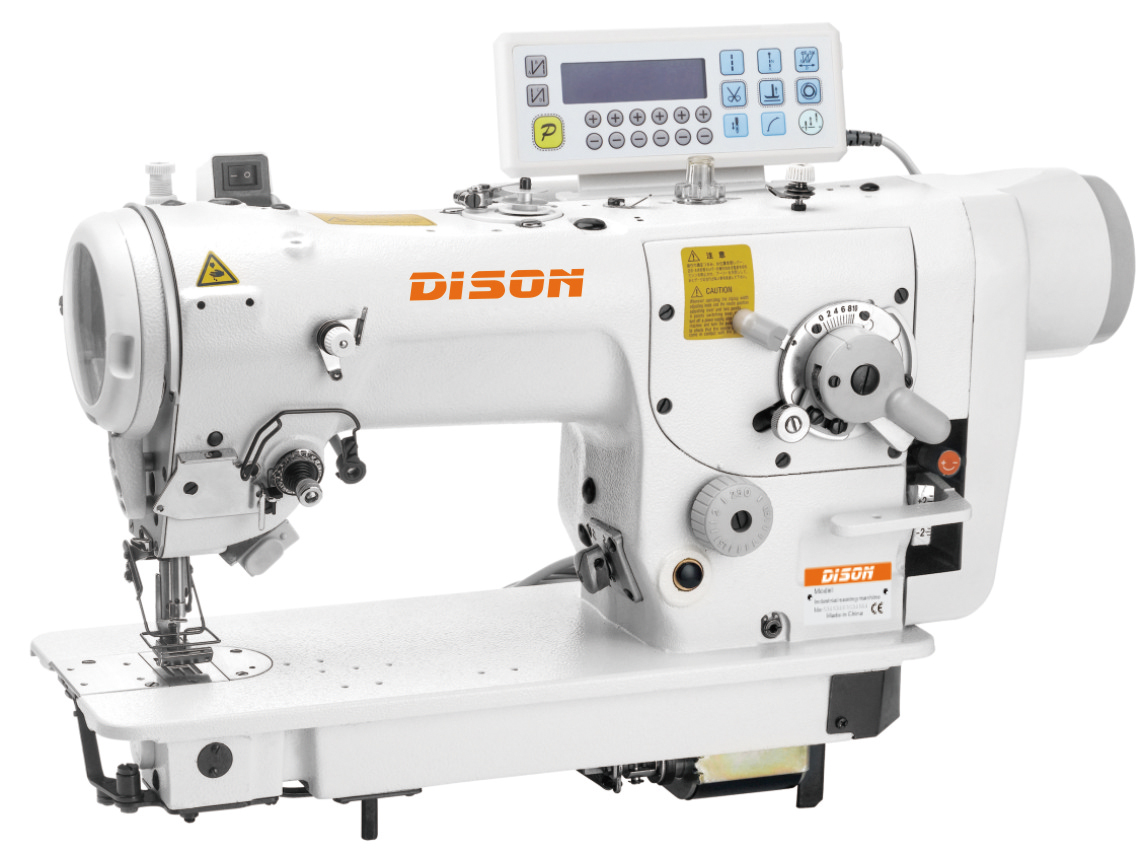

DS-2284D Direct Drive High-Speed Auto Trimmer Zigzag Machine
- Place of Origin:CN;ZHE
- After-sales Service Provided:Overseas third-party support available
- Overall Dimensions:66*35*62cm
- Max. Sewing Thickness:5.5-10mm
- Model Number:DS-2284D
- Brand Name:DISON
- Max. Sewing Speed:4500rpm
- Power:400W
- Mechanical Configuration:Flat-Bed
- Type:Industrial Sewing Machine
- Condition:New
- Stitch Formation:Lock Stitch
Direct drive high-speed auto trimmer zigzag machine
The machine adopts a new type of rotary pole, which can obtain high quality and stable track even under the polar tension.The shuttle axis is used to compensate the mechanism, and the rotating shuttle is equal to the left and right sides of the line, which can prevent the jumper wire and the broken line.For the flexible material, the device is equipped with a small amount of pressure lifting device, which will gently lift the pressure foot and then sew. The stitching will be neat and beautiful.Special design of the bobbin winder, use more convenient, 2284 - D series a machine which can realize the straight seam, 2 zigzag sewing, 4 PM zigzag pattern of joint seam, direct drive with automatic trimming function, greatly improving the efficiency of the production and use of the machine.
