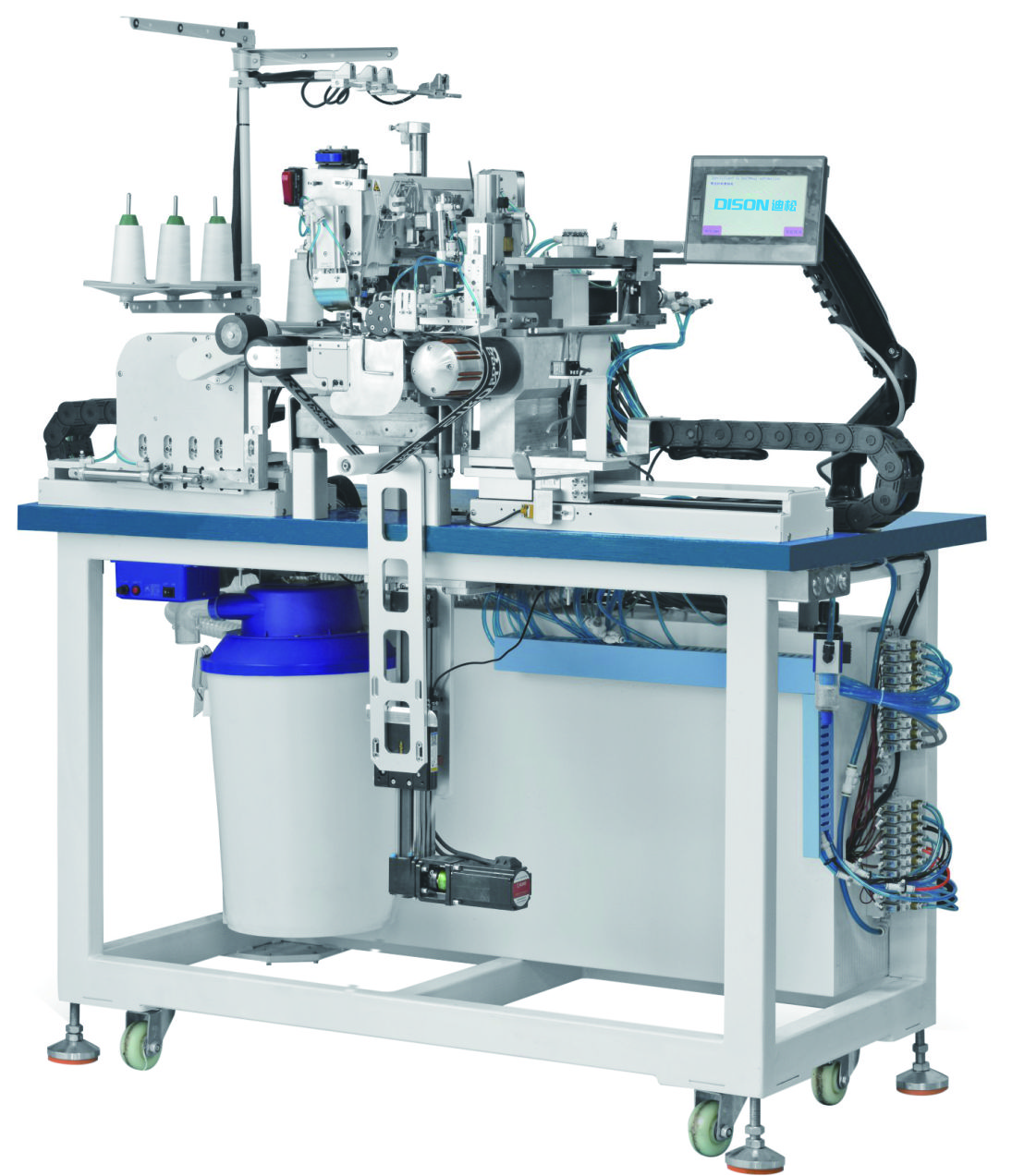

DS-375S Automatic Underwear Elastic Waist Band Attaching Machine
DS-375S
Quantity
规格参数 Specifications | |
机头型号 sewing head model / 电压 Voltage | PEGASUS:W3662HP-33A 220V |
气压 Air Pressure / 耗气量 gas consumption | 6KG 150L/min |
尺寸范围 Size Range | 可操作直径30~60cm，橡筋宽度2~5cm Stretchable diameter range available 30~60cm, Waistband Width 2~5cm |
*宽*高(净尺寸)Measurement(N.S.) | 130*95*140 CM |
产能效率(每小时) Production Capacity(per hour) | 150-180pcs |
Product Description
DS-375S Automatic Underwear Elastic Waist Band Attaching Machine
- 针织类底裤自动上橡筋。Automatic waistband attachement on underpants.
- 电动气动操作处理系统。Electro-pneumatic operation system.
- 自动纠偏装置。With automatic rectifying device.
- 左扩张自动扩张系统。Left wheel expansion automatic expansion system.
- 激光射线辅助设点。Laser ray assitanted setting.
- 带感应器自动检测系统。With automatic sensor detection system .
- 自动倒股装置。Automatic seam overlapping device
- 自动对股位装置。Automatic seam position alignment
- 自动上料（橡筋）装置。Automatic feeding (waitstband) device
适用工位 Applicable station 实际效果 Actual effect 实际效果 Actual effect
