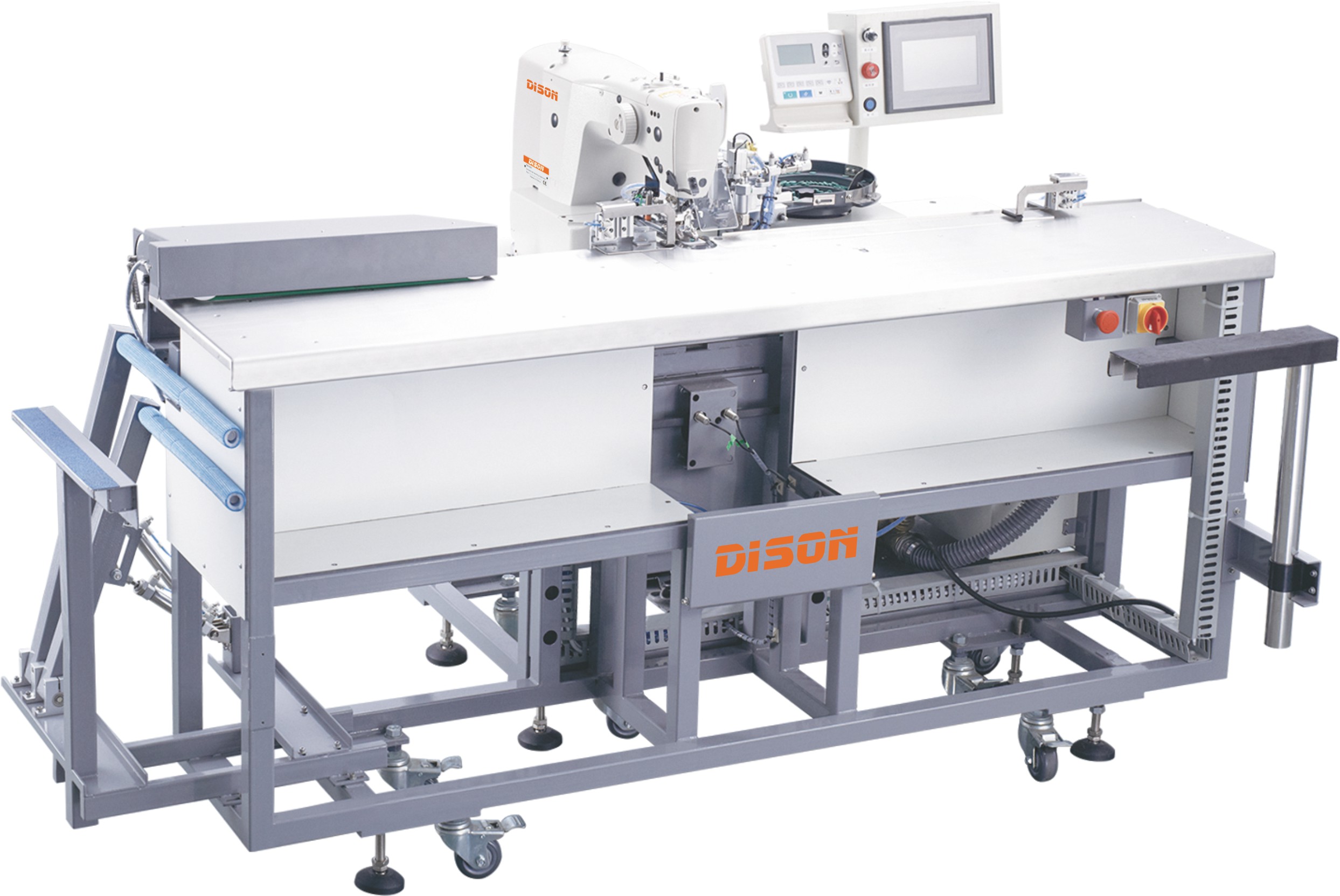

DS-6006A-JK-LK1903BSS Automatic Button Attach Indexer

DS-6006A-JK-LK1903BSS

Quantity

Contact Now

add to cart

Specification

Sewing Head: Juki LK1903BNS丨Brother BE-438HS
Needles: DP x17(#11-#14)
Max Sewing Speed: 2700rpm
Button type: 4 holes 2 holes standard /3 and 5 holes optional
Button range :
Diameter 9 to 20mm
Thickness 1.8 to 4mm
Stitching range :
Max 660mm
Max 51mm interval
Productivity：5 buttons:?/h 6 buttons:?/h
Voltage：220V-240V Mono 50/60 Hz
Power：0.80 Kw
Air pressure /Consumption: 5.5Bar/1,80L/min
Dimensions mm LxWxH：2300x1500x1200
Weight (NW)：322Kg

Product Description

DS-6006A-JK-LK1903BSS Automatic Button Attach Indexer

Compatible with Brother and JUKI machine heads.

Automatic feeding, material pressing, button feeding, button sewing, and material collection for uninterrupted continuous operation.

Multiple operation modes for efficient production.

One operator can simultaneously manage 2-3 machines.

No specialized skill required for operation.

The unit is equipped with the DS-6002B pneumatic button feeder system for all kind of buttons
Distance between buttons are perfectly programmable over color touch screen
Feeding direction is to the right (Only right hand side panels)
After the button attaching the garment will be transported to the stacker
2-3 units can be operated by 1 operator, as well in combination with the buttonhole unit (DS6003A)
Tip:2x button hole indexer and 1
Button indexer is a good combination
High precision servo motor feeding between buttons
Laser light for correct positioning of the garment
Data can be quickly transferred between different machines by USB or SD-Card
I/O page for easy actioning of outputs, and positioning of sensors
Thread monitor for thread end and eventual thread breakage
Panasonic X drive and motor
Genuine SMC for all standard pneumatic parts
No skilled operators required for this operation
