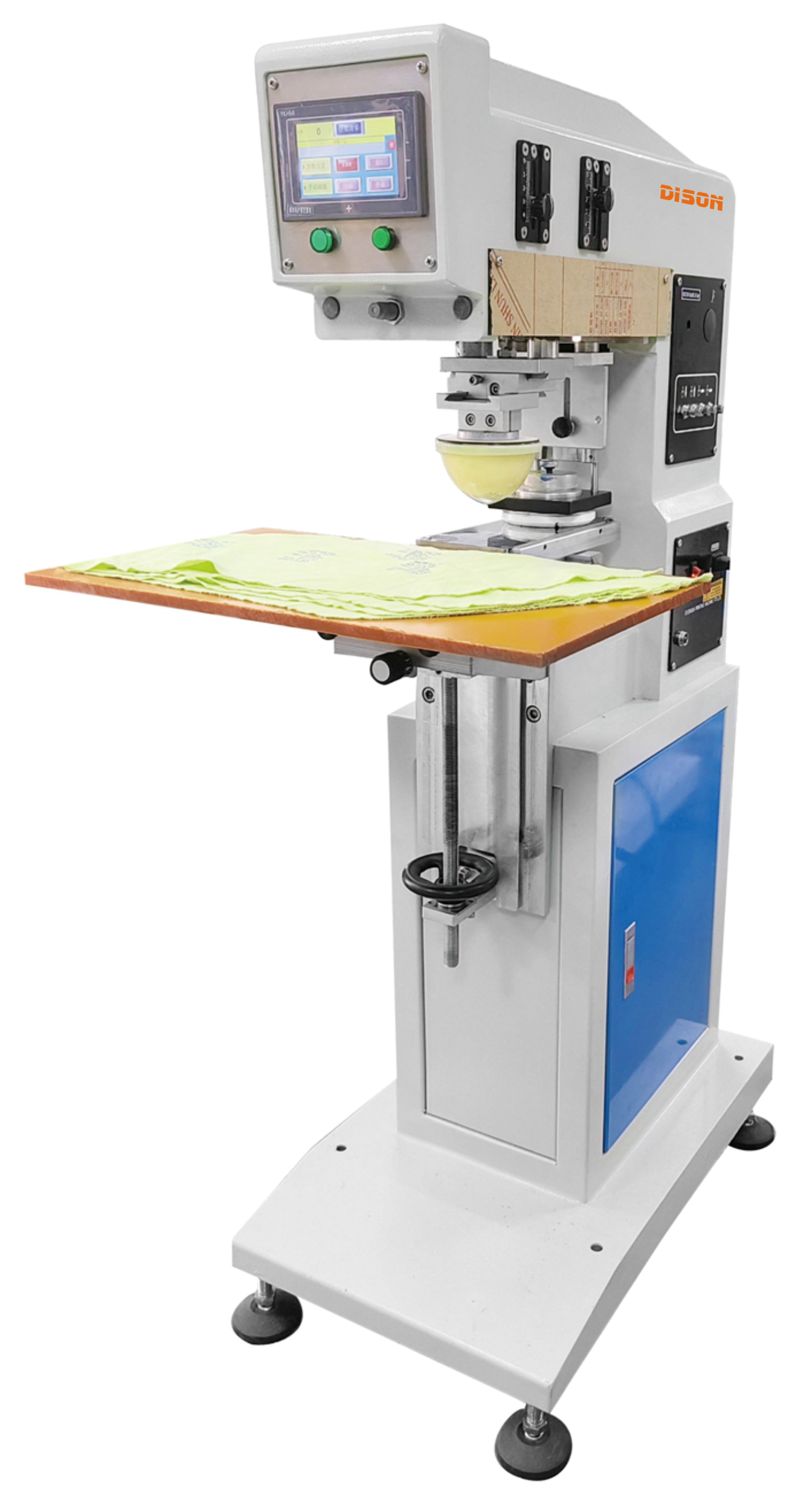

DS-816C Automatic Printing Machine
| Item | Specification |
|---|---|
| Color | 1 Color |
| Oil Pan Diameter | Φ90mm |
| Steel Plate Size | 100250δ0.3mm |
| Printing Pattern Diameter | ≤80mm |
| Front and Rear Stroke of Rubber Head | 160mm |
| Up and Down Stroke of Rubber Head | 80mm |
| Printing Speed Reference | 1000 - 1200pcs/h |
| Power Supply | 220V |
| Air Pressure | 5 - 7bar |
| Overall Dimension | 500×820×1500mm |
| Weight | 120KG |
DS-816C Automatic Printing Machine
1. Programmable touchscreen controls all functions, making operation simple and convenient.
2. Built-in automatic counting function with manual zeroing.
3. Machine frame constructed of high-quality aluminum alloy, lightweight and sturdy.
4. Uses an ink cup for ink application, ensuring stable ink concentration and eliminating the need for solvent addition within 6-8 hours. Ink is less prone to evaporation and splattering, saving ink and creating a clean and comfortable operating environment.
5. Equipped with a fault indication function to quickly pinpoint the location of any malfunction.
6. Adjustable dwell time at each position to meet different printing requirements.
7. Unique cup-shaped blade structure ensures clean and precise ink scraping, resulting in clear and aesthetically pleasing pad-printed products.
8. Allows for two ink applications in a single pad-print to obtain a larger volume of printing ink.
9. Prevents ink from drying out during brief pauses by allowing for blank lines before and after the initial print.
