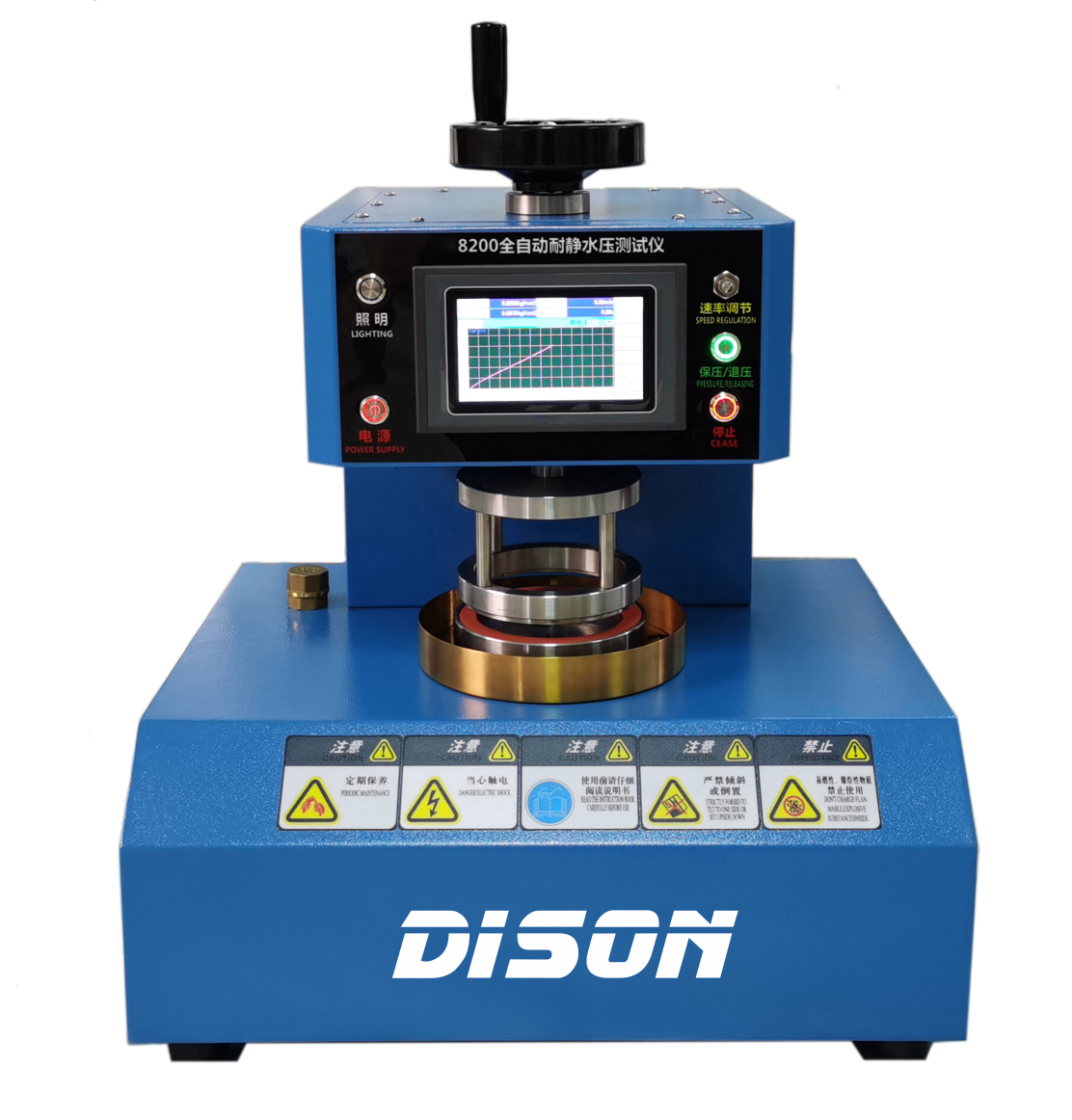

DS-8200 Water Presure Tester
1. Standards: Compliant with GB/T4744, ISO-811, FZ/TO1004, AATCC-127
2. Measurement Range: Permeability, penetration performance, static pressure maintenance
3. Technical Characteristics: Sample is placed horizontally, with pressure borne from below.
4. Pressure Units: Five units can be switched arbitrarily: Kgf/CM2, KPa, MPa, PSI, lbf/in2
5. Pressure Area: 100cm2, d=11.28cm²
6. Maximum Range: Standard 100KPa (1000KPa customizable)
7. Rise Rate: 10-100±30mmh2o steplessly adjustable (high-end configuration includes)
8. Standard Rate: 60±20 mmh2o, (increase rate) 100±30 mmh2o
9. Analysis Degree: 1 mmH2O (fidelity threshold 15-20000 mmH2O)
DS-8200 Water Presure Tester
1. The rise rate is infinitely adjustable from 100-2000±15mmh₂O, significantly superior to quantitative setting testers on the market.
The controller displays the rise rate curve, making the test more accurate. Testing can be performed simply by adding power and water; no air source is required.
2. Lightweight and convenient, especially suitable for office use, with an ultra-quiet design.
3. The tester has a built-in light, solving the problem of insufficient lighting.
4. A large-capacity 2000ML built-in water tank with a permeable water recycling system design allows for longer-lasting testing.
5. External drain valve design allows for complete release, making cleaning and water changes more convenient;
6. Large handwheel clamping design makes operation easier;
7. Upper and lower clamps are made entirely of 304 stainless steel, high-grade, durable, and rust-free;
8. Pressure plate with added waterproof plate ensures cleaner machine during testing.
Applications of the Hydrostatic Pressure Tester:
1.This machine features a novel design, simple operation, beautiful and elegant appearance, small size, and reliable operation. It can be used to evaluate the hydrostatic pressure resistance of a wide range of clothing, including waterproof garments, non-woven fabrics, sportswear, raincoats, down jackets, ski suits, mountaineering suits, diving suits, sailing suits, PVC, PU, PA and other clothing, snow boots, advertising balloons, gloves, fire suits, police uniforms, military field uniforms, and special clothing, as well as clothing and straight-line positions.1. Simple and intuitive interface makes operation much easier.
