DS-8300A-160105-D Large Speed Oil-Free Pattern Template Machine
DS-8300A-160105-D
Quantity

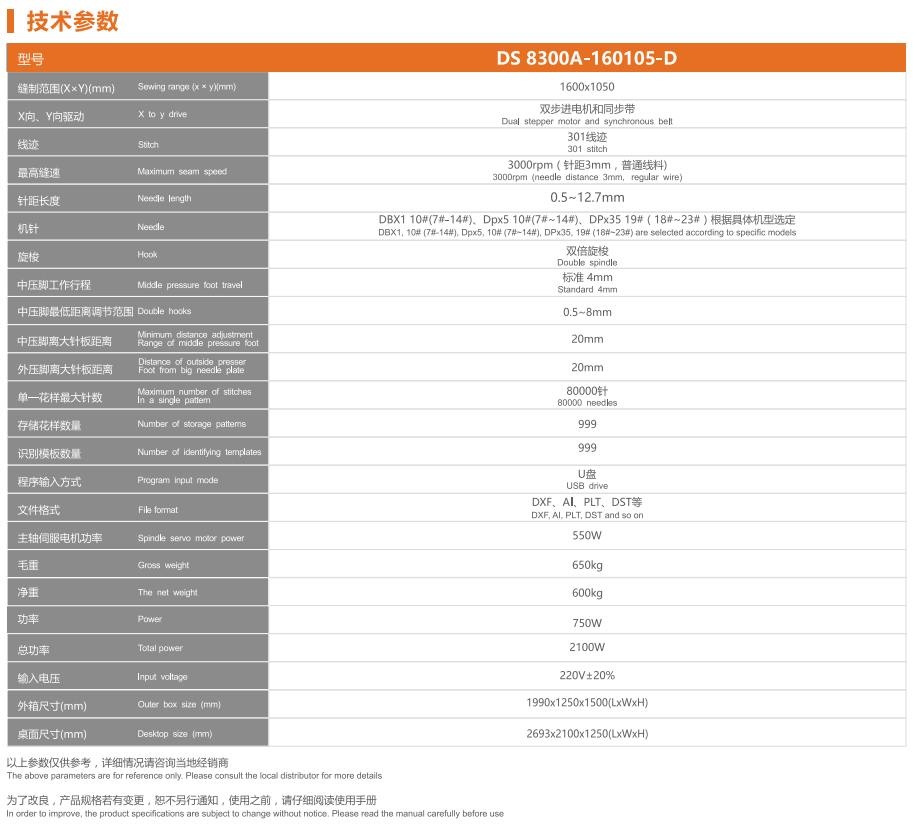

| 型号Model | DS-8300A -160105-D | DS-8300A -200105-D | DS-8300A -250105-D |
| 缝制范围Sewing range | 1600×1050mm | 2000×1050mm | 2500×1050mm |
| 线迹Stitching | 单针301线迹 | ||
| 最高缝速Max sewing speed | 2800r/min | 2500r/min | |
| 针距Needle gauge | 0.5-12.7mm | ||
| 机针Needle system | DB×1 (#8) #7~14 | ||
| 旋梭Hook | 全旋转两倍旋梭 | ||
| 电压Voltage | 220V | ||
| 气压Air pressure | 0.4-0.6MPa | ||
| 总功率Total power | 750w | ||
