DS-896 Automatic Pocket Welting Machine
DS-896
Quantity
- 用于西裤、西装、休闲裤的平行袋(带袋盖)缝制。
- The machine supports the sewing of straight pockets (with flaps) on suits, jackets and pants.
- 双嵌条和单嵌条的切换可以通过操作板的按键一键完成。
- Double-we|t/single-welt sewing can be changed over by the simple touch of a key on the operation panel.
- 扩大了缝制长度(最短18mm-最大220mm)
- Increased adjustable range of sewing lengths (min. 18mm to max.220mm)
Increased productivity
通过搭配可达到最快3000针/分钟，大压脚移动(空送、前送)等装置，实现循环缝制时间的缩短
In addition to the high-speed machine head with a maximum speed of 3,000 sti/min,
faster movement (jump and forwarding)of the clamp foot achieves a shorter machine time.
The corner knives are easily adjustable
角刀整体采用抽屉式，使调整工作和切刀的更换变得简单易行，由于角刀盖子的细长化，减少了面料突出现象，提高了切刀切割的
精准度。
The corner knives, which can be drawn out in the entire knife unitis adopted. The knives are easily adjusted and can
also be changed with ease. The slim corner knife cover helps reduce material thrusting, thereby achieving material
cutting with accuracy.

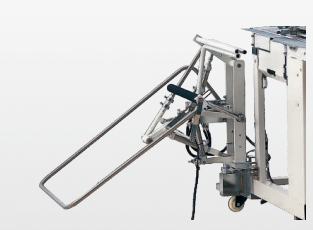

Newly developed stacker which is able to handle small articles
设置了夹紧式机械手，能用于口袋到布料端最短距离为250MM的面料缝制，配置了布料检测传感器。防止机器的误操作。
With the clamp bar stacker, the machine is able to handle materials with a shortest distance of 250 mm from its
edge to the pocket. A stacking sensor is also provided as standard to prevent stacking errors.
Suction device (for sewing tables with separated right and left parts)
选配吸风装置，通过吸住衣片提高面料平展性。
Option: the device improves the ease of the material placement by sucking the garment body.
