DS-G18 Inflatable Boat Cone End Welding Machine
DS-G18 Inflatable Boat Cone End Welding Machine
1. This machine adopts advanced technology and has functions of hot air and hot wedge. Hot air and hot
wedge functions can be switched, easy to replace. It can meet various welding requirements of TPU, PVC, PE,
PVC mesh cloth, etc.
2. It adopts editable PLC control system, high-definition touch screen display, Chinese and English system, can
be programmed according to user requirements, microcomputer automatically controls the whole machine.
simple operation, stable action performance, and low failure rate.
3.Auto temperature control with warning device for the up limit temperature.
4.Auto compensation,auto micro back to reduce empty welding.
5. Double pedals control.
6. It could work up to 24 hours continuously.
7. The unique heating structure can reach up to 750 C for hot air, and 500 C for hot wedge, the temperature is automatically tracked and controlled by a
computer, and the accuracy can reach ±1C.
8. Super strong torsional dynamic design.
9.Blowing-in hot air is filtrated without any water and oil.
10. The hot wedge function is noiseless, energy-saving, environmentally friendly and smoke-free, with strong welding fastness, no wrinkles, and no bright
edges.
11. The equipment can set different parameters according to different welding materials, and automatically store them, which is convenient to call and
improve work efficiency.
12. The angle of the lower arm is adjustable, suitable for producing rubber boats cone end of different sizes. The lower arm is adjusted to the level and
can be used for overlap welding, reinforcement tape welding, hem welding, etc.

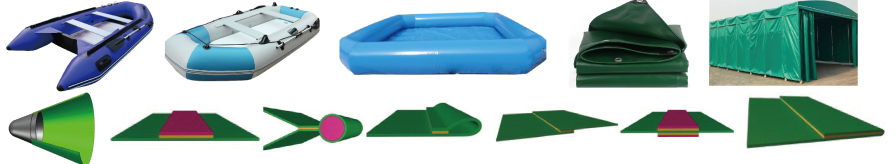

应用/Application
适用于生产涂覆PU、PVC、TPU、PE、PVA等各种防水产品，如橡皮艇柔性橡胶锥端、大型充气帐篷、充气船、橡皮艇、充气游泳池、气球、广告横幅、
无缝缝制品和渔船等。
Suitable to produce all kinds of waterproof product which is made from coated PU,PVC,TPU, PE, PVA, such as Inflatable boat flexible rubber
cone end, large inflatable tents, rubber boats, inflatable boats, inflatable swimming pools, balloons, banner, seamless sewing products, and
