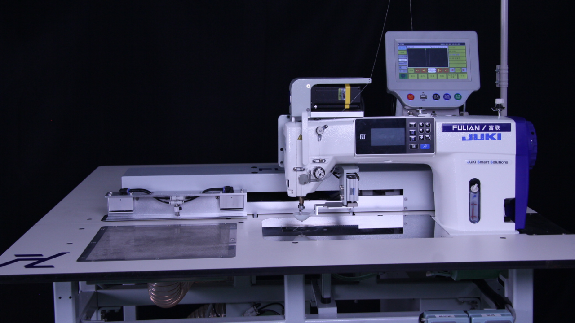

DS-MA530 In-line Automatic Template Sewing Machine
DS-MA530
Quantity

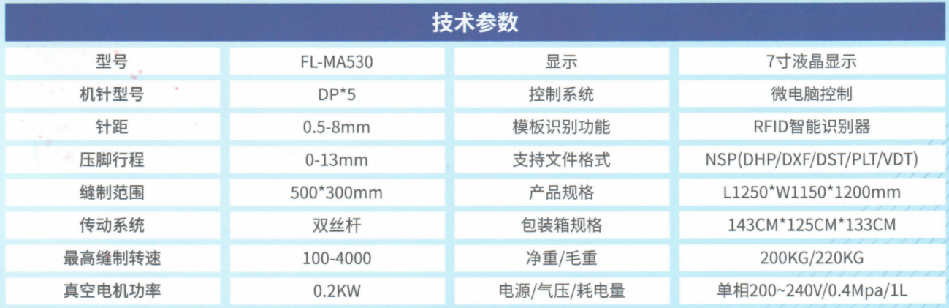

Parameter information:：
Laser can be added
A patch bag usually takes about 20s,
A foot fork usually takes about 40s, (manual labor usually takes about 1 minute and 30 seconds)
INLINE TEMPLATE MACHINE SERIES
- Easy entry and exit of assembly line
- machine with multiple functions: patch pockets, foot forks, plackets, bag covers, opening bags, etc
- De-technology, no talent selection: using automation technology to reduce dependence on sewing machine skills
- Can replace 40% flat car sewing process
Product features:
- The body covers an area of 1200mm * 1150mm
- Sewable range 500mm * 300mm
- Equipped with RFID, chip recognition technology, and automatic recognition templates

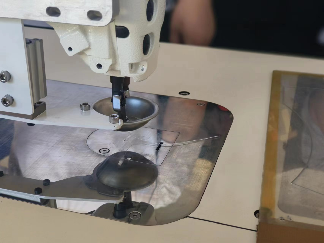

- Adopting a follow-up presser foot design, programming is carried out according to different fabric thicknesses, making it more flexible for high and low position sewing. It is suitable for various thick and thin fabrics, improving the quality of the process. Equipped with a dedicated auxiliary large presser foot, it can effectively prevent fabric misalignment during the sewing process and ensure the quality of the sewing process
Industry top configuration

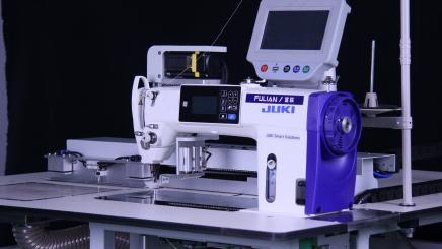

Head: JUKI 9000C
(Oil free machine head imported from Japan)
Optional domestic machine head:
Unicorn LS2-H9000-SD
Most of the market uses JUKI 8000A

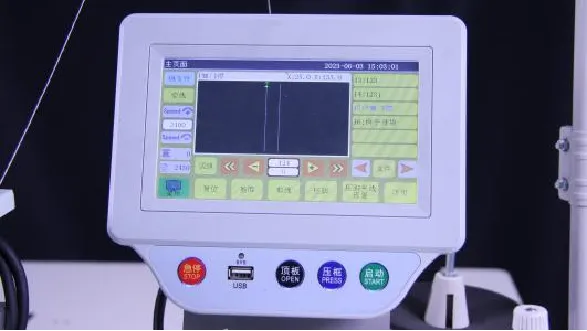

System: Spark Control System (Optional with Ruineng system)
Language support: China, UK, Japan, South Korea, Vietnam
Other language requirements can be mentioned

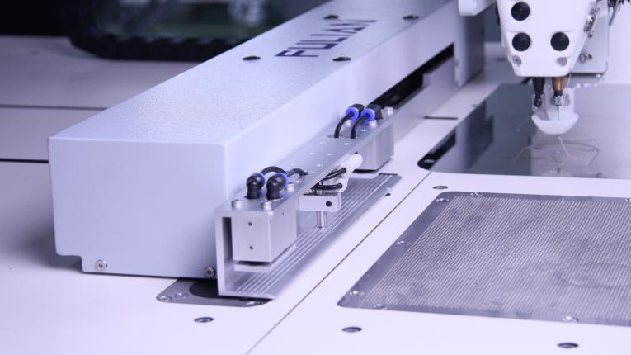

Adopting a structure of X and Y axis double screw rods and multiple sliders, (Y-axis 500mm, X-axis 300mm)
Advantages：
Light voice
Low vibration
Accurate
Stable use
Intersecting with the synchronous belt, the screw rod is more durable, More convenient replacement, long service life, and simple maintenance

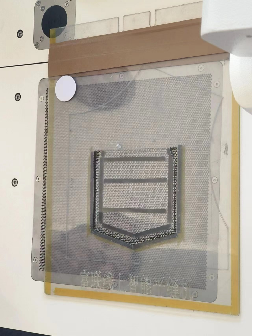

Innovative hexagonal suction module More effective and widely used for various fabrics without ironing
For jean, woven fabrics, Invisible zippers do not require suction devices
800W

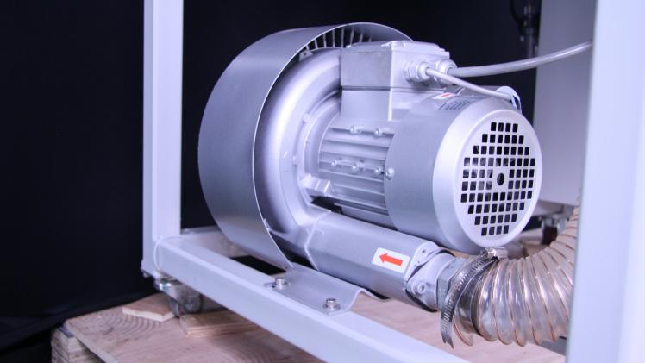

A super powerful suction system, When the equipment is sewing, the suction air automatically turns off, Effectively avoiding deformation of lip shape
Applicable process reference:
patch pocket
pocket making
pocket making Foot fork
POLO placket (cuttable)
POLO placket (cuttable) bag flap
序号 | 工艺名称 Process Name | 传统日产量/件 Traditional daily production/piece | 工艺模板日产量/件 Daily production of process templates/piece | 效率提升 Efficiency improvement |
1 | 侧叉 | 550 | 800 | 45% |
2 | 贴袋 | 480 | 960 | 100% |
3 | 免烫龟背 | 480 | 1100 | 129% |
4 | 吸风贴袋对格子 | 300 | 900 | 200% |
5 | 工装袋盖一次成型 | 460 | 1150 | 150% |
6 | 西装贴袋 | 400 | 960 | 140% |
7 | 里挂面 | 600 | 1000 | 67% |
8 | 袖克夫 | 700 | 1400 | 100% |
9 | 开门襟 | 360 | 600 | 67% |
10 | 开袋 | 500 | 750 | 50% |
11 | 上级领 | 280 | 560 | 100% |
12 | 下级领 | 280 | 560 | 100% |
