DS-Q1 Fully Automatic Tagging Machine
DS-Q1
Quantity
TECHNICAL PARAMETER:
Operating Air Pressure 0.7 MPa (7 kg
Operating Air Pressure 0.7 MPa (7 kg
)Tag Hole Diameter Recommended >2 mm
Workspace >50 X 40 cm (for machine placement)
Factory Air Source Output > 0.55 MPa (5.5 kg)
Needle Model: Fine Needle (3.7 cm), standard factory configuration
Voltage: 220V
Dimensions (Length X Width X Height ):50 *40.5 *43 cm
Dimensions (Length X Width X Height ):50 *40.5 *43 cm
NW/GW:14kg/16.8kg
CardWidth:30-80mm
Cardlength:30-140mm
Compatible Adhesive Tags:10-40mm
CardWidth:30-80mm
Cardlength:30-140mm
Compatible Adhesive Tags:10-40mm
Tagging Speed:0.3/pcs
Electrical Control Parameters:
P001-Card Ejection Time
P002-Needle Punching Time
P003-Early Vacuum Feeding Time
PO04-Delayed Material Replenishment Time
PO08-Restore Factory Default Settings
Product Description
DS-Q1 Fully Automatic Tagging Machine
Operating Modes:
Before Starting Work, You Must First Align The Card So That The Center OfThe Card Hole Aligns With The Needle Tip.
After Alignment, Press The StartButton To Begin Operation.
Multi-card Modes:
Single Card, Dual Cards, Three Cards, Four Cards, Five Cards, Six Cards
Semi-automatic Mode (foot Pedal):
Controls A Single Action Via A Foot Pedal Switch, Suitable For Precise Adjustments.
Automatic mode:Press the sensor panel to automatically nail.
- Display:"STOP"indicates the emergency stop switch is activated.
- Press And Hold The"s"Nailing Button To Test If The Stapling Air Valve IsFunctioning Normally; Release To Reset.
- Press The"p"Adjust Card Button To Perform Card AdjustmentOperations;
- Press Again To Reset.Press And Hold The"+"Clear Button For 5 Seconds To Reset TheNeedle Count.
- Press And Hold The""Total Button For 5 Seconds To View TheTotalCount.

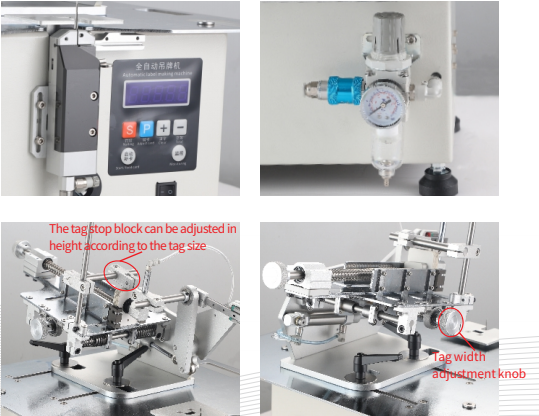

Detailed Images
Application：
Packing & Delivery
