DS-1290 Glue Dispensing And Jelly Multifunctional Machine(Three In One)

DS-1290 Glue Dispensing And Jelly Multifunctional Machine(Three In One)

1.Using imported servo motor and ball screw closed module, the displacement accuracy can reach 0.015mm;
2.Adopting industrial marble shock absorption fuselage design, the equipment can operate in high speed, stable and super bass;
3.We independently researched and developed dispensing control software, which adopts map guiding function and programming free
operation, with more accurate positioning;
4.It has the continuous compensation function of point, line, surface, arc, circle and irregular curve, which can meet the requirements of more
complex dispensing process;
5.The glue points are even, without glue stacking, breaking, hanging, scratching and scraping. It can realize the combination of multiple
processes, such as tapping glue, marking glue with jelly strips and scraping glue with 360 degree rotary flat mouth;
6.Chinese operation interface, easy to learn and understand, automatic cycle work, high efficiency, save labor costs.

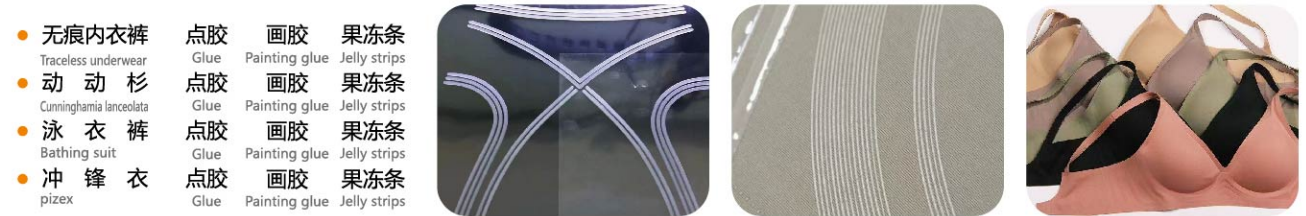

7.Applicable glue:PUR, single component silica gel, two-component silica gel.

Application
